SGP.32 for eSIM in IoT: what it is, how it works and when to use it

SGP.32 is the GSMA’s eSIM remote-provisioning standard for screenless, unattended IoT devices. It adapts the consumer model (SGP.22) for fleets without a user interface by introducing the eSIM IoT manager (eim) and IoT profile assistant (IPA) to push, switch and manage operator profiles over the air.

ALL | Blog | eSIM_SGP32

In brief: SGP.32 enables remote, server-driven eSIM profile management for IoT devices without screens, improving compliance and rollout speed versus consumer and M2M specs.



Compared with older M2M (SGP.02) flows, SGP.32 simplifies large-scale roll-outs, helps you localise profiles to meet roaming rules, and reduces truck rolls. for fundamentals, see our article on eSIM for IoT.



A quick refresher: eSIM standards before SGP.32



Until now, most teams used one of two GSMA tracks:

  • SGP.02/01 (M2M) — the “original” machine-to-machine spec with SM-DP and SM-SR servers. It’s robust, but heavy and unsuited to very constrained devices and many modern IoT supply chains.

  • SGP.22/21 (consumer) — the spec phones and wearables use today, driven by a Local Profile Assistant (LPA) in the device and SM-DP+/SM-DS in the cloud. Great when a user can tap a screen or scan a QR code — less great for headless sensors and meters.



SGP.32 arrives to bridge the gap for network-constrained and UI-constrained IoT devices, building on the companion architecture document SGP.31. Think “consumer-like simplicity” adapted for unattended, low-power, headless devices.



What SGP.32 actually defines



SGP.32 is a full technical spec: it standardises how an eUICC in an IoT device is provisioned, updated and managed when the device can’t present a user interface and may connect rarely, briefly, or via narrowband tech. Core pieces you’ll meet:



  • eIM (eSIM IoT Manager) — the server-side control plane for profile lifecycle (download, enable, disable, delete). It encapsulates operator-agnostic logic so OEMs and fleet owners can drive provisioning workflows programmatically.

  • IPA (IoT Profile Assistant) — replaces the consumer LPA. It exists as IPAe (embedded on device) or IPAd (deployed service), handling discovery, bootstrap and orchestration suitable for constrained devices.

  • eUICC profiles, security & interfaces — SGP.32 lays out the interfaces between the eIM, IPA and eUICC, and the security functions used for mutual authentication, profile delivery and integrity. gsma.com



Where SGP.22 expects a user-driven flow (QR codes, UI prompts), SGP.32 supports “headless”, remotely triggered provisioning. That’s the big practical win for massive IoT.



SGP.32 vs SGP.22/M2M at a glance



  • Control model

    • SGP.22: user/LPA led, suited to smartphones.

    • SGP.32: server-orchestrated via eIM, suited to unattended devices.

  • Device constraints

    • SGP.22: assumes UI and good bandwidth.

    • SGP.32: tolerates low power, intermittent links and limited RAM/flash.

  • Supply chain

    • SGP.02: heavier integration (SM-SR), difficult across diverse OEMs.

    • SGP.32: more flexible, aligns with mass manufacturing & zero-touch field activation.

  • Interoperability ambition

    • SGP.32/31 explicitly calls for component modularity (eIM ↔ IPAe/IPAd), making multi-vendor integration practical — an historic pain point.

The implementation benefits (beyond the hype)

  1. Simpler logistics and faster roll-outs
    Ship devices with a bootstrap profile, then assign the right local operator profile remotely when they first power up or when regulations change. No tray swaps, no QR codes, no regional stock-keeping.

  2. Designed for massive IoT reality
    SGP.32 tolerates sleepy devices, narrow pipes and long-lived field assets. Profile operations and retries fit the reality of NB-IoT, LTE-M and battery-sensitive deployments.

  3. Regulatory flexibility
    Permanent roaming restrictions are tightening in some markets. With SGP.32 you can move devices to a local profile at the right time, meeting local rules without replacing hardware. Combine this with multi-IMSI/eSIM to minimise service disruption.

  4. Clean separation of duties
    eIM gives fleet owners a standardised way to automate profile lifecycle independent of any one MNO or SIM vendor. That makes multi-carrier strategy and commercial agility much easier.



The real-world challenges you should plan for



  1. Ecosystem readiness and vendor maturity
    SGP.32 is young. Not every modem, module, eUICC or operator toolchain is at the same level of compliance or testing coverage, especially across IPA/eIM permutations. Build lab time for interoperability testing and keep a short list of plan-B profiles.

  2. Profile orchestration and state management
    SGP.32 reduces complexity on the device, but increases orchestration behind the scenes. Your eIM workflows, error handling, idempotency and retries need to be bullet-proof, particularly for fleets that wake up once a day.

  3. Security, keys and trust anchors
    The spec defines strong mutual authentication and secure profile delivery — but you still have to operate it securely: protect bootstrap credentials, rotate keys, and integrate with your incident response. Review SGP.32’s security sections carefully with your security team.

  4. Operations and observability
    You’ll want fleet-level telemetry: which device has which profile, success/failure codes for downloads, time-to-first-attach after a switch, and fallbacks. Without this, diagnosing field issues gets hard fast.

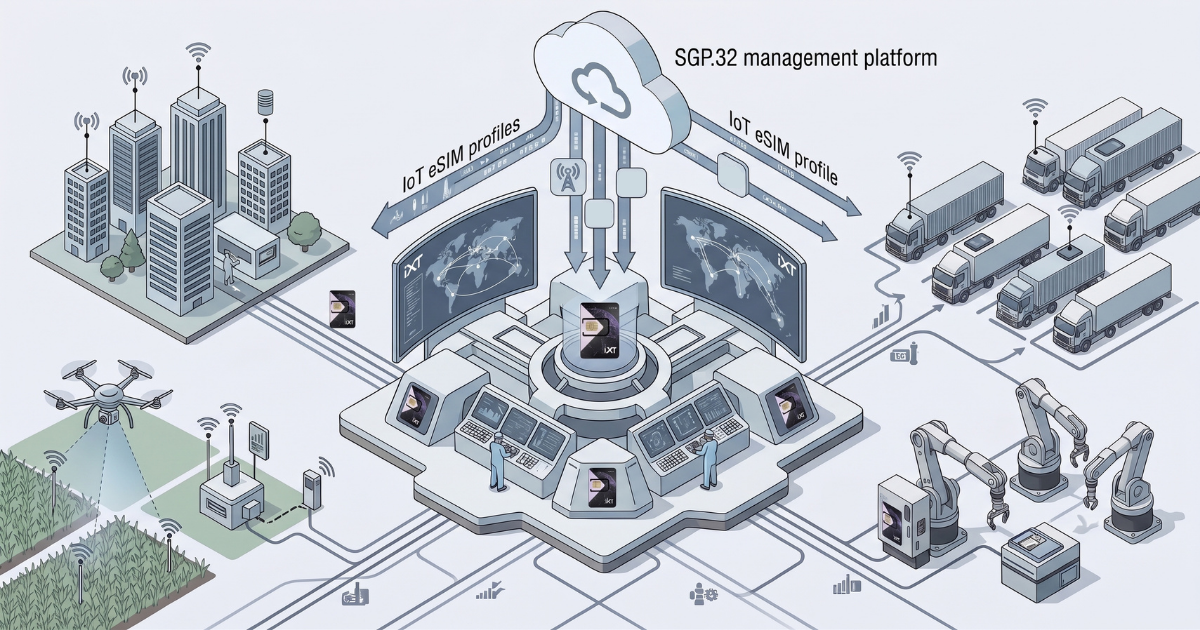

How SGP.32 fits into a modern IoT connectivity stack



A typical architecture we see work well looks like this:



  • Device & module — eUICC with SGP.32 support; IPAe for on-device orchestration if used.

  • Connectivity layer — multi-network access (eSIM/multi-IMSI), plus private networking so device traffic avoids the public internet.

  • eIM — your orchestration brain for profile lifecycle across the fleet.

  • Cloud & apps — direct private hand-off to your cloud (AWS/Azure/GCP), policy enforcement and analytics.



At IXT we align to this model with global coverage across 600+ networks/190+ countries; multi-IMSI with eSIM support; SecureNet private networking and direct cloud integrations; and a CMP for real-time SIM control and reporting. That combination is built for eSIM fleets and regulatory flexibility.



Read more: IXT SIM – global coverage



Product deep dives: SIM, Global Data Pool, SecureNet.



Design tips for a smooth SGP.32 rollout



1) Start with a clean device baseline



Pick modules with documented SGP.32/IPAe support and recent firmware. Test the bootstrap profile attach across all radio tech you need (LTE-M, NB-IoT, LTE). Keep OTA update paths open for the module and IPAe.



2) Treat provisioning as code



Model eIM flows explicitly: profile request → download → install → enable → attach verification → clean-up. Make each step observable and retryable. Store device↔profile state centrally for audits and rollbacks.



3) Plan for locality & compliance



Map target countries to your local-profile strategy and switching triggers (e.g., upon first attach in-country or after N hours of roaming). Your commercial contracts should mirror the technical plan so billing follows the profile that’s actually active. (IXT’s multi-IMSI plus eSIM helps here.)



4) Isolate traffic from day one



Even with perfect profile management, sending device traffic over shared public paths is a risk. Use private APNs/VPNs and direct cloud links so your control and data planes avoid exposure. A foundation for Zero Trust later.



5) Make power a first-class constraint


Downloading a profile is not free in terms of energy or time. Schedule operations when devices are awake for other reasons, choose efficient bearers, and budget for retries.



Security notes you shouldn’t skip



The specs define strong, standards-based controls: mutual authentication, secure channels, profile integrity and lifecycle security. That said, operational security is on you, and your provider:



  • SIM identity + private networking: bind device identity to SIM/eUICC and keep traffic off the public internet with private APNs/DNNs and direct cloud. (IXT SecureNet is built for this model.)

  • Monitoring: watch for rogue base station behaviour, abnormal attach patterns and profile churn.

  • Compliance: align your architecture with GDPR/NIS2 and data-residency requirements; SGP.32 helps you place profiles locally, but your data path must be compliant too. For a broader view of why this matters, see our Zero Trust brief.



How IXT helps you make SGP.32 real





Takeaways on SGP.32



  • SGP.32 is the first eSIM spec aimed squarely at massive, headless IoT. It keeps what’s good about consumer flows but removes the need for screens and constant connectivity.

  • The eIM + IPA model is the heart of it: a cleaner, programmable way to run profile lifecycle at fleet scale — if you invest in orchestration, observability and security.

  • Pair SGP.32 with multi-network coverage, private networking and a capable CMP and you get a practical route to regulatory flexibility, lower logistics overheads and fewer truck rolls.



FAQ: common SGP.32 questions



Does SGP.32 kill SGP.22 for IoT?

No. If your device has a UI and lives on rich connectivity (e.g., an industrial tablet), SGP.22 is fine. SGP.32 targets headless, constrained devices and massive fleets. Some portfolios will run both. gsma.com



What’s the difference between LPA and IPA?


Consumer devices use LPA to drive user-initiated downloads from SM-DP+/SM-DS. IoT devices under SGP.32 use IPA (on-device or distributed) and take instructions from eIM, enabling remote, unattended flows. gsma.com



Can SGP.32 help with permanent roaming rules?


Yes. Switching to a local profile is a prime use-case. It won’t change the law, but it lets you comply without changing hardware. Combine with a provider that offers local IMSIs and multi-IMSI coverage. gsma.com



How mature is tooling today?

The GSMA specs are published, and several vendors, MNOs and MVNOs have working stacks; maturity varies. Budget time for multi-vendor interop testing (eIM ↔ IPA ↔ eUICC) early in your project.
